Nabertherm Drawer or Bogie Kilns

Delivery Charges

Since 2016 we have been supplying the cost-effective Nabertherm kilns, manufactured in Lilienthal, Germany. They are a modern design with the latest controller technology (with downloadable software) and energy saving insulation.


These Nabertherm pages give the official Nabertherm UK List Prices - not the CTM Discounted Price -

you need to speak to us to get what is probably the lowest UK price.

For each kiln we list the official UK List Price including delivery from Nabertherm’s factory and the kiln furniture set price, then the Total List Price (incl kiln furniture set) before VAT and the Total List Price (including the kiln furniture set) and including VAT.


[We do not normally give the VAT inclusive figure on the website but buying a kiln is a big decision.]


Ask us about this months CTM discount.

We really do try to give the best straight forward price !


All Nabertherm 1300oC Front Loader Drawer or Bogie Kilns are Three Phase Only

PRICE LIST

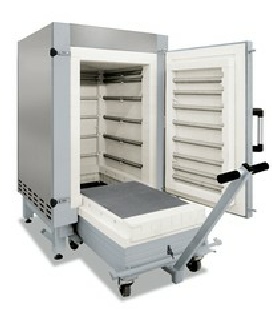

Five Sided Drawer / Bogie Front Loaders

Professional chamber front loading drawer kilns.

High quality, energy saving back insulation and multiple layered insulation for low exterior temperatures.

Includes 4 segment, 5 program controller which has a USB socket, and shows power consumption.

Heated from three sides, door and floor. Floor protected by silicon carbide plate.






  • solid state relays;
  • dual shell housing;
  • dual shell door with long-life seal; door mounted removable controller;
  • lockable safety shut off door;
  • three sides, door and floor heating;
  • Silicon Carbide floor plate;
  • Elements on supporting rods
  • exhaust outlet for uniform venting of exhaust air;
  • GS safety mark for controlled safety


  • NW150   Drawer        1300oC
  •  Three Phase Only    11 kW
  • 150 litres / 5.3 cuft  approx.
  • Internal: 450 x 530 by 590 mm high
  • External: 810 x 1140 by 1570 mm high
  • Kiln incl. controller £5,500.00 + VAT
  • Kiln furniture Set - 4 shelves 490 x 440 mm and 9 x 2" and 9 x 4"  props £141.20 + VAT
  • List Price incl KFS £5,641.20 + VAT
  • List Price incl KFS £6,769.44 incl VAT
  • Extra shelves £29.00 + VAT (with kiln)
  • Upgrade to a 10 programme, 20 segment controller at £170 + VAT.


This price is delivered by tail lift vehicle to the road side in mainland UK.

  • NW200   Drawer         1300oC
  • Three Phase Only    15 kW
  • 200 litres / 7 cuft  approx.
  • Internal: 500 x 530 by 720 mm high
  • External: 860 x 1140 by 1700 mm high
  • Kiln incl. controller £6,210.00 + VAT
  • Kiln furniture Set - 5 shelves 490 x 440 mm and 9 x 2" and 12 x 4" props £175.00 + VAT
  • List Price incl KFS £6,385.00 + VAT
  • List Price incl KFS £7,662.00 incl VAT
  • Extra shelves £29.00 + VAT (with kiln)
  • Upgrade to a 10 programme, 20 segment controller at £170 + VAT.


This price is delivered by tail lift vehicle to the road side in mainland UK.

  • NW300   Drawer         1300oC
  •  Three Phase Only    20 kW
  • 300 litres / 10.6 cuft  approx.
  • Internal: 550 x 700 by 780 mm high
  • External: 950 x 1310 by 1840 mm high
  • Kiln incl. controller £8,180.00 + VAT
  • Kiln furniture Set - 5 pairs of shelves 500 x 320 mm each and 12 x 2" and 12 x 4"  props £303.60 + VAT
  • List Price incl KFS £8,483.60 + VAT
  • List Price incl KFS £10,180.32 incl VAT
  • Extra shelves £54.00 a pair + VAT (with kiln)
  • Upgrade to a 10 programme, 20 segment controller at £170 + VAT.


This price is delivered by tail lift vehicle to the road side in mainland UK.


Please ask for the current

CTM Discounted price


For Example:

November 2016 CTM Discounted Price including controller, kiln furniture, delivery and VAT is :-


  • NW150   £6,173.73

(List Price £6,769.44)


  • NW300   £9,284.45

(List Price £10,180.32)


CTM Offer - Upgrade to the 10 program controller for £144.50+ VAT


Options at the time of ordering the Drawer / Bogie kiln:-

  • Upgrade to a 10 programme, 20 segment controller at £170 + VAT
  • Observation hole in door = £60 + VAT
  • Second Bogie
  • N440 £1,910 + VAT
  • N660 £2,240 + VAT
  • N1000 £2,940 + VAT
  • Other options include automatic exhaust vent flaps, exhaust hood etc etc. Please ask




  • NW440    Bogie         1300oC
  • Three Phase Only    30 kW
  • 450 litres / 15.7 cuft  approx.
  • Internal: 600 x 750 by 1000 mm high
  • External: 1000 x 1400 by 1830mm high
  • Elements on supporting rods.
  • Kiln incl. controller £9,790.00 + VAT
  • Kiln furniture Set - 5 pairs of shelves 550 x 360 mm each and 15 x 2", 15 x 4" props £332.00 + VAT
  • List Price incl KFS £10,122.00 + VAT
  • List Price incl KFS £12,146.40 incl VAT
  • Extra shelves £58 a pair + VAT (with kiln)
  • Upgrade to a 10 programme, 20 segment controller at £170 + VAT.


The NW440 price DOES NOT include Delivery - please ask for quote.

  • NW660   Bogie          1300oC
  • Three Phase Only    40 kW
  • 650 litres / 22.7 cuft  approx.
  • Internal: 600 x 1100 by 1000 mm high
  • External: 1000 x 1750 by 1830 mm high
  • Elements on supporting rods.
  • Kiln incl. controller £12,430.00 + VAT
  • Kiln furniture Set - 4 pairs of shelves 550 x 500 mm each and 20 x 2", 30 x 4" props £464.00 + VAT
  • List Price incl KFS £12,894.00 + VAT
  • List Price incl KFS £15,472.80 incl VAT
  • Extra shelves £98.00 a pair + VAT (with kiln)
  • Upgrade to a 10 programme, 20 segment controller at £170 + VAT.


The NW660 price DOES NOT include Delivery - please ask for quote.

  • NW1000     Bogie       1300oC
  • Three Phase Only    57 kW
  • 1000 litres / 35 cuft  approx.
  • Internal: 800 x 1000 by 1250 mm high
  • External: 1470 x 1850 by 2000mm high
  • Elements on supporting rods.
  • Kiln incl. controller £16,200.00 + VAT
  • Kiln furniture Set - on request
  • List Price excl KFS £16,20.00 + VAT
  • List Price excl KFS £19,440.00 incl VAT

  • Upgrade to a 10 programme, 20 segment controller at £170 + VAT.


The NW1000 price DOES NOT include Delivery or Kiln Furniture Set - please ask for quote.

Nabertherm do make higher powered versions of the Five Sided Drawer and Bogie Front Loaders that fire to 1340oC - higher ampage / faster firing / higher price.
